9m3 Hot Asphalt Tank for Tanker Lorry Upper Body WITH BALTUR DIESEL OIL BURNER GEAR PUMP WhsApp:+8615271357675

Hubei Dong Runze Special Vehicle Equipment Co., Ltd

9m3 Hot Asphalt Tank for Tanker Lorry Upper Body WITH BALTUR DIESEL OIL BURNER GEAR PUMP WhsApp:+8615271357675

Brand Name : Dong Run Ze

Model Number : Steel lined PE

Certification : C3

Place of Origin : Hubei ,China

MOQ : 1 Unit Call /WhatsApp:+8615271357675

Price : Negotiated at Weichat:King253725877

Payment Terms : TT emial to <253725877@qq.com>

Supply Ability : Ask us for Better Price <253725877@qq.com>

Delivery Time : 25 working days

Packaging Details : Some Body Part By containers , Truck by Ro-Ro or Bulk base on the ship and port in your country. If the truck on the deck, we will spray antirust paint with free. please emial to

Tank steel : 5mm, 6mm

material : Q235, LDPE7042

Good for : Hot alsphat, bitumen, emulsion

HS-Code : 73090000

Cell : 8615271357675

Size : 9144 / 12192*2438*2591mm

Contact Now

9m3 Hot Asphalt Tank for Tanker Lorry Upper Body WITH BALTUR DIESEL OIL BURNER GEAR PUMP WhsApp:+8615271357675

FOB Price: US $10,000-20,000 / Piece
Min. Order: 1 Piece

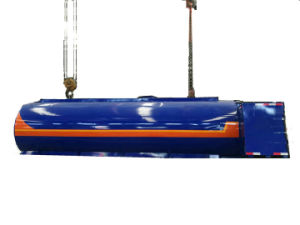

Asphalt Storage Tank with Burners Heating 20, 000L to 50, 000L
FOB Price: US $10,000-20,000 / Piece
Min. Order: 1 Piece

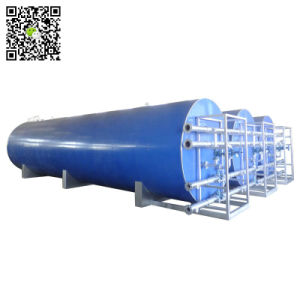

Customizing Bitumen Storage Tank with 2 Burners for Hot Liquid Asphalt
FOB Price: US $10,000-20,000 / Piece
Min. Order: 1 Piece
Steel Asphalt Storage Tank with Diesel Oil Burners Heating for Mini Asphalt Plant
FOB Price: US $10,000-20,000 / Piece
Min. Order: 1 Piece

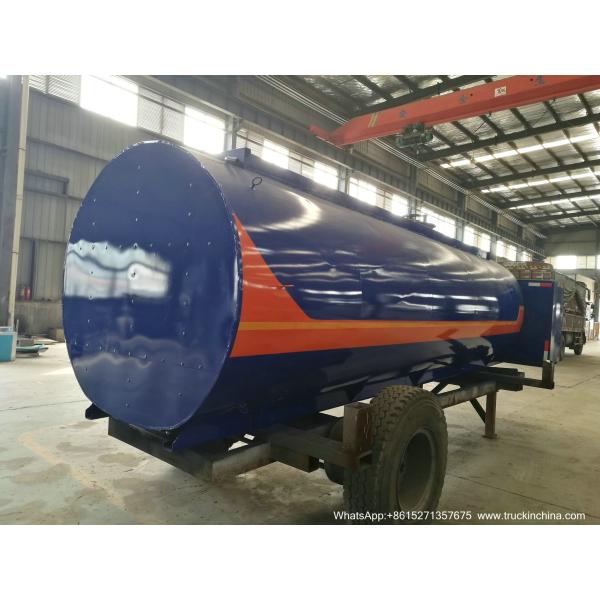

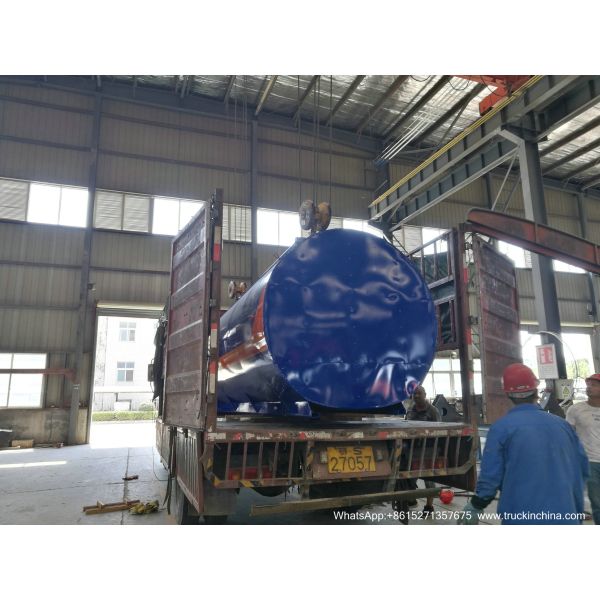

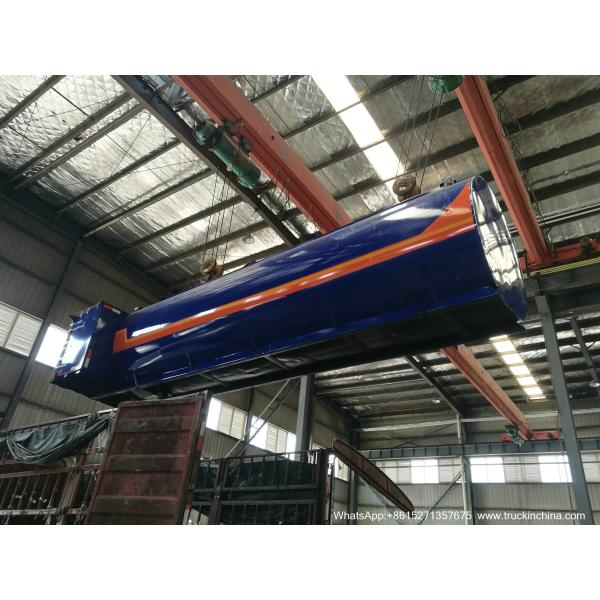

9m3 Hot Asphalt Tank for Tanker Lorry Upper Body

9m3 Hot Asphalt Tank for Tanker Lorry Upper Body

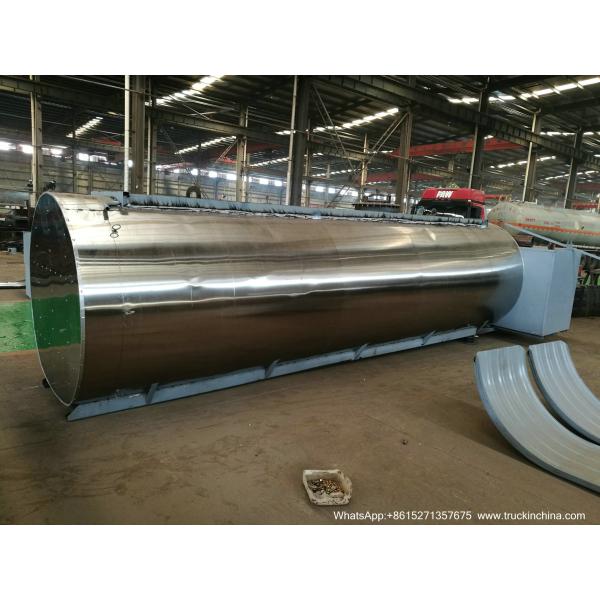

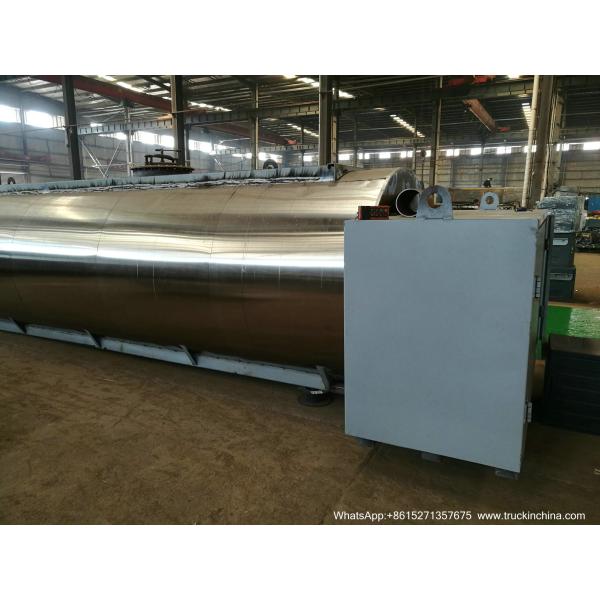

ASPHALT MOVING TANK TANK 5MM CARBON STEEL Q235A INSULATION 85MM ROCK WOOL, WRAPED 1MM STAINLESS STEEL SS201

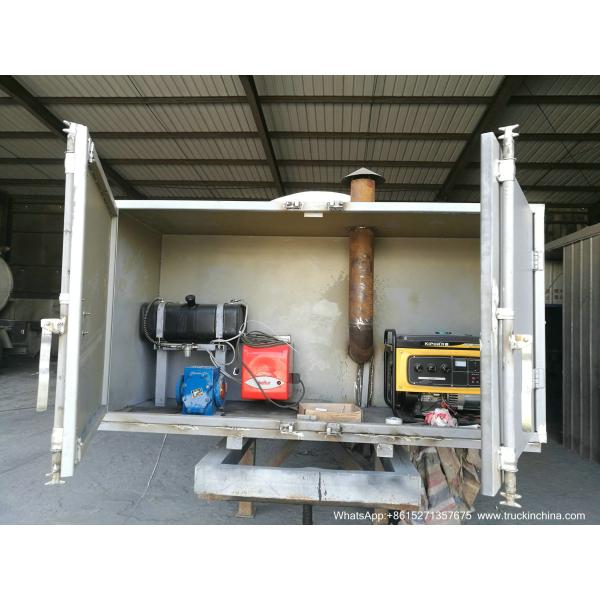

WITH ONE SET BALTUR DIESEL OIL BURNER, ONE SET KIPOR GENERATOR GEAR PUMP HEAD TO PUMP HOT ASPHALT

Effective Volume Of Tank8.5 m3 tank design
MODEL:DTA5090
Thickness Of Tank5mm Carbon steel Q235A
Insulation85mm
Insulation Outside shell wrapedWraped 1mm Stainless Steel SS201
Heating ModeDiesel Oil Burner

One set of Italian BALTUR diesel oil burner, Model: BTL20, capacity: 15*104 Kcal/h,

One set of general-purpose generator KIPOR insulating layer: 85 mm rock woo

Heat-insulation Capability ( /h ℃) Average Temp. Fall ≤1 Liquid Asphalt density 1150-1250kg/m3;

Tank effective Volume of tank:8.5 m3 ;

Gear pump to pump hot asphalt LQB18(Rate Of Flow 18M3/H)

Product dimension


Tank dimension outside


Tank dimension inside


Load capacity


6850mm*2340mm*1900mm


5950mm*1600mm*1600mm


5760mm*1430mm*1430mm


12000 Kg

Weight


Design Temperature(ºC)


Design Pressure


2745 Kg


500 ºC


0.013 MPA

Thickness


TANK 5MM CARBON STEEL Q235A, INSULATION 85MM ROCKWOOL, WRAPED 1MM STAINLESS STEEL SS201

product trype


Steel tank body for lorry

General Generator KGE6500E :

Generator set
Rated frequency50 Hz or 60 Hz
Prime power50 Hz: 4.5 kW (4.5 kVA) 60 Hz: 5 kW (5 kVA)
Standby power50 Hz: 5 kW (5 kVA) 60 Hz: 5.5 kW (5.5 kVA)
Rated voltage115/230 V or 120/240 V
Engine
Engine typeKG390GEX
Displacement0.389 L
Starter system12V Electric system
Genset
Noise level(7m)74 dB(A))
Fuel tank capacity27 L
Overall dimensions675 x 520 x 540 mm
Net weight90 kg

Baltur BTL20 Light Oil Burners

Fuel Light oil OperationSingle-stae

Minimum Thermal Power (kW) to ErP118.6 Maximum Thermal Power (kW) to ErP261 Min flow rate (Sm³/H)10

Max flow rate (Sm³/H)22 Max Viscosity (°E)1.5 Electric power supply typeAC No. of Phases1N

Power Supply Voltage (V)230 Power Supply Frequency (Hz)50 Fan Motor Power (kW)0.2 Weight without packaging (kg)17 Weight with packaging (kg)18 Width (mm)780

Depth (mm)370 Height (mm)410
