DFA 6x4 LDH / RHD Oil Delivery Truck With 22CBM Aluminium Alloy Tank

Hubei Dong Runze Special Vehicle Equipment Co., Ltd

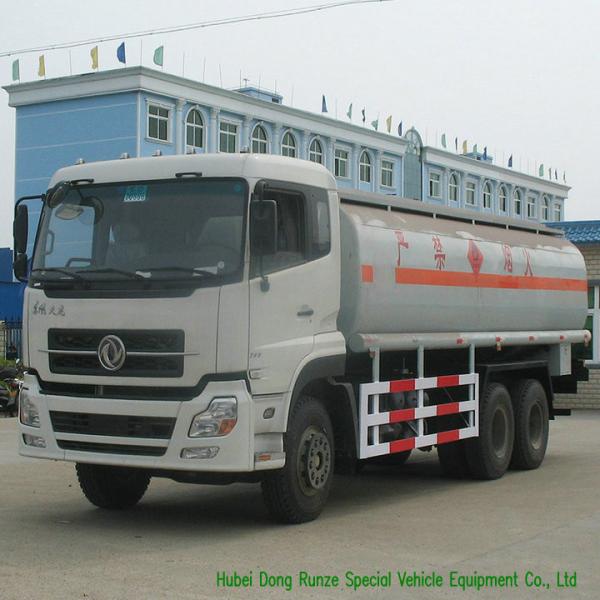

DFA 6x4 LDH / RHD Oil Delivery Truck With 22CBM Aluminium Alloy Tank

  • 1
  • 2
  • 3

Brand Name : DFA King Long

Model Number : DRZ

Certification : C3

Place of Origin : Hubei ,China

MOQ : 1 Unit Call /WhatsApp:+8615271357675

Price : Negotiated at Weichat:King253725877

Payment Terms : TT emial to <253725877@qq.com>

Supply Ability : Ask us for Better Price <253725877@qq.com>

Delivery Time : 25 working days

Packaging Details : Some Body Part By containers , Truck by Ro-Ro or Bulk base on the ship and port in your country. If the truck on the deck, we will spray antirust paint with free. please emial to

HS-Code : 8705909990

Cell : 8615271357675

Tank material : Carbon Steel ,stainless Steel ,Aluminium Alloy 3

Dimension : 10165x2500x3250mm

Drive form : 6x4 LDH /RHD

pump : oil pump Mounted

Contact Now

DFA Aluminium Alloy Oil Refuelling Fuel Tank Truck for Petroleum Oil /Gasoline/ Petrol/ Diesel Express

Medium:gasoline,density:0.7t/m3;
Effective volume of tank: 22cubic meters, the shape of tank
size(length/long axis/minor axis)(mm) : 7100x2400x1650mm
Protective material: Aluminum Alloy or Q235A Carbon steel.

Vehicle ModelDRZ5250GYYELVehicle BrandDRZE
Overall dimensions10165x2500x3250mmCurb weight10800kg
Tank dimensions7100x2400x1650mmTank volume22000L


Fuel tank structure parameters
Tank dimensions7100x2400x1650mmTank volume22000L
Tank materialAluminium alloy 5083Tank thickness6mm
Head thickness6.3mmColor and LogoOptional
Standard configurationChassis, Aluminium alloy 5083, sub frame, Aluminum Alloy manhole, 2.5 inch valve gravity flow, Aluminum outer aisle and rear ladder, Aluminum Alloy barrel and side guardrail, steel toolbox and rear protection.
Selective configurationPumping system, flow meter, European standard configuration, OPW download system


Chassis parameters
Chassis modelEQ1250LZ3GJ1Chassis brandDONGFENG
Overall dimensions9815X2462X2910mmWheel base4900+1350mm
Front/rear wheel track1967/1860/1860mmFront/rear suspension1250/2315mm
Approach/departure angle32/22°Maximum speed80m/h
Chassis ManufacturerDongfeng Motor Corporation
CabConfigurationA row and a half deluxe cab(with sleeping berth),allowable 3 passengers
ColorRed,other color is optional
EngineModelC230 33
EmissionEuro 3
Type6 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine
Rated power230hp,rated power speed 2200rpm
Displacement8300ml
Max.torque861N.m
Bore x stroke114X135mm
ManufacturerDongfeng Cummins Engine Co., Ltd.
TireSize12.00R20 steel wire tire
Number10+1 nos
Frame280mm,double layers.
Front axle5.0T
Rear axle13.0T
Drive form6X4
Rated voltage24V,DC
Transmissions9 speed forward 1 reverse.
Steering devicePower assisted steering
Steering wheelLeft hand drive
Selective configuration
If there is a slight change in the chassis parameters above,please take the actual product as the standard

Truck Photo show:



FAQ
·MOQ:1 SET
·Delivery date:25 workdays after we received deposit.
·Payment term:
1. 30% contract value as the deposit by T/T,70% contract value payoff before delivery after production finish.
2. 50% contract value as the deposit by T/T,50% contract value payoff before delivery after production finish
